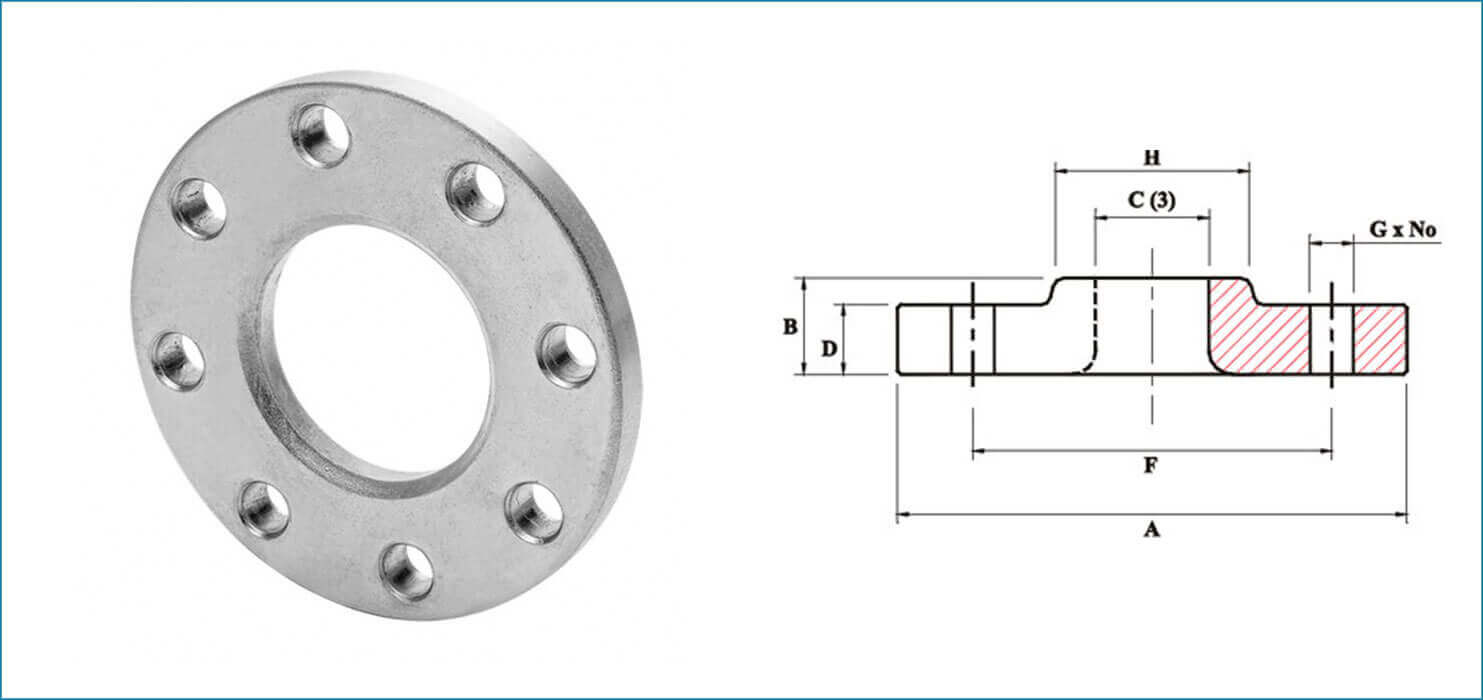

Lap joint flanges are also known as Backup flanges, Loose Ring flanges, Loose Hubbed flanges, and Van Stone flanges.
Choosing the right flanges for your industrial application is crucial. It entirely depends on the requirement of the intended application.
Lap joint flanges are suitable for piping systems, allowing easy disassembly, while rolled angle rings are suitable for structural applications to create curved or rounded shapes within various structures.
Examine your project requirements and prepare a list. If you need a fitting that can be effortlessly assembled, disassembled, or made from different materials, then a lap joint flange is an ideal choice.
Are you looking for something more rigid and challenging to disassemble? A rolled-angle ring is the best choice for you.
The hubs are typically taller than a slip on style and can be modified per your requirements. Slip ons in higher pressure classes are often made with the height of a lap joint for a better connection.
If the hub height is not a concern and a lap joint is not readily available, customers will sometimes opt for a slip on made to a lap joint style with a machined hub.
Naturally, we recommend that both items are of the same grade for the purposes of uniformity, but your application will determine what’s best and/or necessary.
Various industries, including piping and structural applications, use industrial flanges. Lap Joint Flanges and Rolled Angle Rings two components that play crucial roles in numerous operations.
The primary difference between lap joint flanges and rolled angle rings is that rolled angle rings are only available in a butt-weld configuration.
On the other hand, lap joint flanges come in both butt-weld and slip-on variations. In contrast to the backing flange on a rolled angle ring, the backing flange on a lap joint flange is free to rotate.
