Pipe Elbow Manufacturing

Pipe Elbow or commonly known as “bends” are used as a connection point between two lengths of pipes to change the direction of flow in the pipe. They are usually manufactured at angles of 90°, 45° or 180° are available in a range of materials such as Stainless Steel, Carbon Steel and Alloy Steel etc. While the 90° bends are manufactured as short radius elbows and long radius elbows, the 45° elbows are typically manufactured only as long radius elbows. At Parshva Steel And Alloys Pvt Ltd, we even provide 3D, 5D bends as per the requirement and drawing.

We can provide elbows in the following grades:

Stainless Steel Elbow: ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Elbow: ASTM A 234 WPB , WPBW, WPC, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Low Temperature Carbon Steel: Elbow – ASTM A420 WPL3 / A420WPL6
Alloy Steel Elbow: ASTM /ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex/Super Duplex Stainless Steel Elbow: ASTM A 815 UNS NO S 31803, S 32205, S32750 ,S32760
High Nickel Alloys: ASTM/ASME SB 366 UNS2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276)

Advantages of pipe elbow

As one of the leading stainless steel elbow manufacturers, we have a top-notch manufacturing facility and focus on developing globally standardized stainless steel pipe elbow to meet the needs of different industries. Here are a few advantages of going with our manufactured pipe elbow.

Compared to the carbon steel pipe elbow, the stainless steel elbow bend pipe will not erode, corrode, etc. stainless steel is a strong material and used in the construction industry. It is an excellent way to increase your structural capabilities and maintain the integrity of the engineering design permanently.
The smoothness of the inner wall of the stainless steel pipe elbow helps you avoid any occurrence of impure condensation. It is an ideal material.
Stainless steel can easily endure high and low temperatures. It allows our products to safely work for a very long time at high and low temperatures.
It has high tensile strength.
Stainless steel elbow bend pipe has a unique passivation effect against the ph value of the chemicals, water, impurities, dissolved oxygen, and more.
It has a thing dense oxidized film that prevents corrosion on the inside of the pipe.

We are a leading stainless steel elbow pipe manufacturers that build carbon steel and stainless steel/alloy steel material elbow bend pipe of long and short radius for oil, gas, chemical, utilities, construction, etc. industries.

Parshva Steel And Alloys is a Manufacturer and Exporter of Carbon Steel, Alloy Steel, Stainless Steel, Duplex, Super Duplex & Higher Nickel Alloys Butt Weld Elbows as per ASTM A 234 WPB , WPBW, WPC, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70, ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L, ASTM A420 WPL3 /A420WPL6, ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91, ASTM A 815 UNS NO S31803, S32205, S32750, S32760, ASTM/ASME SB 366 UNS2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276) to Dubai, Sharjah, Abu Dhabi , Oman, Qatar, Saudi Arabia, Kuwait, Iran, Iraq, Malaysia, Indonesia, Norway, Nigeria, Algeria, Egypt, Libya, Brazil, Angola, Guinea, Mozambique, Tanzania, Venezuela, Canada, Ecuador, Ghana, Vietnam, Trinidad And Tobago, Thailand, Korea, Taiwan, Australia, Italy, France, Spain, Russia, Germany, Azerbaijan, Kazakhstan, Turkey, Uzbekistan and other countries.

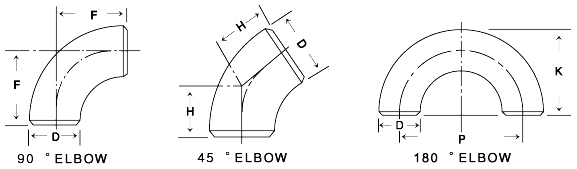

Nominal Pipe Size (NPS)	Outside Diameter at Bevel	Center-to-End			Center-to-Center		End-to-End
		90° Elbow		45° Elbow	180° RETURN		180° RETURN
		F		H	P		K
		Long	Short	long	long	Short	long	Short
½ ¾ 1 1¼ 1½	0.84 1.05 1.32 1.66 1.90	1.50 1.50 1.50 1.88 2.25	– – 1.00 1.25 1.50	0.62 0.75 0.88 1.00 1.12	3.00 3.00 3.00 3.75 4.50	– – 2.00 2.50 3.00	1.88 2.00 2.19 2.75 3.25	– – 1.62 2.06 2.44
2 2½ 3 3½ 4	2.38 2.88 3.50 4.00 4.50	3.00 3.75 4.50 5.25 6.00	2.00 2.50 3.00 3.50 4.00	1.38 1.75 2.00 2.25 2.50	6.00 7.50 9.00 10.50 12.00	4.00 5.00 6.00 7.00 8.00	4.19 5.19 6.25 7.25 8.25	3.19 3.94 4.75 5.50 6.25
5 6 8 10 12	5.56 6.62 8.62 10.75 12.75	7.50 9.00 12.00 15.00 18.00	5.00 6.00 8.00 10.00 12.00	3.12 3.75 5.00 6.25 7.50	15.00 18.00 24.00 30.00 36.00	10.00 12.00 16.00 20.00 24.00	10.31 12.31 16.31 20.38 24.38	7.75 9.31 12.31 15.38 18.38
14 16 18 20 22	14.00 16.00 18.00 20.00 22.00	21.00 24.00 27.00 30.00 33.00	14.00 16.00 18.00 20.00 22.00	8.75 10.00 11.25 12.50 13.50	42.00 48.00 54.00 60.00 66.00	28.00 32.00 36.00 40.00 44.00/td>	28.00 32.00 36.00 40.00 44.00	21.00 24.00 27.00 30.00 33.00
24 26 28 30 32	24.00 26.00 28.00 30.00 32.00	36.00 39.00 42.00 45.00 48.00	24.00 26.00 28.00 30.00 32.00	15.00 16.00 17.25 18.50 19.75	72.00 – – – –	48.00 – – – –	48.00 – – – –	36.00 – – – –
34 36 38 40 42	34.00 36.00 38.00 40.00 42.00	51.00 54.00 57.00 60.00 63.00	34.00 36.00 38.00 40.00 42.00	21.00 22.25 23.62 24.88 26.00	– – – – –	– – – – –	– – – – –	– – – – –
44 46 48	44.00 46.00 48.00	66.00 69.00 72.00	44.00 46.00 48.00	27.38 28.62 29.88	– – –	– – –	– – –	– – –

Nominal Pipe Size	long							Nominal Pipe Size
Nominal Pipe Size	SGP	STD	S40	X-S	S80	XX-S	XX-S	Nominal Pipe Size
½ ¾ 1	0.08 0.10 0.15	0.08 0.11 0.16	0.08 0.11 0.16	0.10 0.14 0.20	0.10 0.14 0.20	0.15 0.22 0.36	0.12 0.13 0.25	½ ¾ 1
1¼ 1½ 2 2½ 3	0.26 0.35 0.64 1.12 1.58	0.26 0.37 0.66 1.29 2.04	0.26 0.37 0.66 1.29 2.04	.035 0.50 0.90 1.79 2.74	0.35 0.50 0.90 1.79 2.74	0.64 0.93 1.69 3.43 5.25	0.42 0.65 1.33 2.33 3.83	1¼ 1½ 2 2½ 3
4 5 6 8 10	2.91 4.49 7.09 14.40 25.40	3.84 6.48 9.94 20.10 35.40	3.84 6.48 9.94 20.10 35.40	5.36 9.13 15.00 30.50 47.70	5.36 9.13 15.00 30.50 57.00	10.20 17.60 29.10 51.40 92.80	8.02 14.70 24.20 53.20 103.00	4 5 6 8 10
12 14 16 18 20	38.10 56.70 74.30 94.20 116.00	52.00 67.90 89.00 113.00 140.00	57.00 79.10 118.00 169.00 220.00	68.70 89.90 118.00 150.00 186.00	94.00 133.00 195.00 275.00 373.00	134.00 – – – –	171.00 236.00 350.00 495.00 676.00	212 14 16 18 20
22 24 26 28 30	141.00 168.00 198.00 230.00 264.00	169.00 202.00 237.00 276.00 316.00	267.00 366.00 430.00 500.00 575.00	225.00 268.00 315.00 367.00 421.00	493.00 636.00 – – –	– – – – –	886.00 1160.00 – – –	22 24 26 28 30
32 34 36 38 40	301.00 340.00 380.00 425.00 471.00	361.00 408.00 457.00 510.00 565.00	654.00 739.00 904.00 – –	480.00 543.00 608.00 679.00 753.00	– – – – –	– – – – –	– – – – –	32 34 36 38 40
42 44 46 48 50	518.00 570.00 623.00 677.00 735.00	622.00 684.00 748.00 814.00 884.00	– – – – –	828.00 912.00 997.00 1085.00 1178.00	– – – – –	– – – – –	– – – – –	42 44 46 48 50
52 54 56 58 60	796.00 857.00 926.00 991.00 1060.00	956.00 1031.00 1109.00 1190.00 1274.00	– – – – –	1305.00 1375.00 1480.00 1588.00 1700.00	– – – – –	– – – – –	– – – – –	52 54 56 58 60

Nominal Pipe Size	Short							Nominal Pipe Size
Nominal Pipe Size	SGP	STD	S40	X-S	S80	XX-S	XX-S	Nominal Pipe Size
½ ¾ 1	– – 0.10	– – 0.11	– – 0.11	– – 0.14	– – 0.14	– – 0.22	– – 0.17	½ ¾ 1
1¼ 1½ 2 2½ 3	0.17 0.24 0.43 0.75 1.05	0.18 0.25 0.44 0.91 1.36	0.18 0.25 0.44 0.91 1.36	0.23 0.33 0.60 1.19 1.83	0.23 0.33 0.60 1.19 1.83	0.39 0.57 1.13 2.19 3.49	0.28 0.43 0.89 1.49 2.55	1¼ 1½ 2 2½ 3
4 5 6 8 10	1.94 2.99 4.73 9.61 16.90	2.56 4.32 6.63 13.40 23.60	2.56 4.32 6.63 13.40 23.60	3.58 6.09 10.00 20.30 31.80	3.58 6.09 10.00 20.30 38.00	6.79 11.80 19.50 34.30 61.00	5.35 9.79 16.20 35.50 68.60	4 5 6 8 10
12 14 16 18 20	25.40 37.80 49.50 62.80 77.70	34.60 45.30 59.10 75.30 93.10	38.00 53.00 79.00 113.00 147.00	45.80 60.00 78.30 99.90 124.00	63.00 89.00 130.00 183.00 249.00	89.50 – – – –	114.00 158.00 234.00 330.00 451.00	12 14 16 18 20
22 24 26 28 30	94.10 112.00 132.00 154.00 176.00	113.00 135.00 158.00 184.00 211.00	178.00 244.00 287.00 334.00 383.00	150.00 179.00 210.00 245.00 281.00	329.00 424.00 – – –	– – – – –	591.00 773.00 – – –	22 24 26 28 30
32 34 36 38 40	201.00 227.00 253.00 283.00 314.00	241.00 272.00 304.00 340.00 377.00	436.00 493.00 603.00 – –	320.00 362.00 405.00 453.00 502.00	– – – – –	– – – – –	– – – – –	32 34 36 38 40
42 44 46 48 50	346.00 380.00 415.00 452.00 490.00	416.00 456.00 499.00 543.00 589.00	– – – – –	554.00 608.00 665.00 724.00 786.00	– – – – –	– – – – –	– – – – –	42 44 46 48 50
52 54 56 58 60	530.00 572.00 616.00 661.00 707.00	637.00 688.00 740.00 794.00 849.00	– – – – –	870.00 917.00 976.00 1059.00 1133.00	– – – – –	– – – – –	– – – – –	52 54 56 58 60

Nominal Pipe Size	Long
Nominal Pipe Size	SGP	STD	S40	X-S	S80	XX-S	XX-S
½ ¾ 1 1¼	0.04 0.05 0.08 0.13	0.04 0.06 0.08 0.13	0.04 0.06 0.08 0.13	0.05 0.07 0.10 0.18	0.05 0.07 0.10 0.18	– – 0.18 0.32	– – 0.13 0.21
1½ 2 2½ 3	0.18 0.32 0.60 0.79	0.19 0.33 0.69 1.02	0.19 0.33 0.69 1.02	0.25 0.45 0.90 1.37	0.25 0.45 0.90 1.37	0.47 0.85 1.72 2.63	0.33 0.67 1.17 1.92
4 5 6 8	1.46 2.25 3.55 7.20	1.92 3.24 4.97 10.10	1.92 3.24 4.79 10.10	2.68 4.57 7.50 15.30	2.68 4.57 7.50 15.30	5.09 8.80 14.50 25.70	4.01 7.35 12.10 26.60
10 12 14 16	12.70 19.00 28.40 37.20	17.70 26.00 34.00 44.50	17.70 28.50 40.10 59.00	23.90 34.40 45.00 59.00	28.50 47.00 66.50 97.50	41.00 65.00 – –	51.50 85.50 118.00 175.00
18 20 22 24	47.10 58.30 70.50 84.10	56.50 70.00 84.50 101.00	84.50 110.00 – 183.00	75.50 93.00 113.00 134.00	138.00 187.00 257.00 318.00	– – – –	247.00 338.00 443.00 580.00
26 28 30 32	99.00 115.00 132.00 150.00	119.00 138.00 158.00 180.00	– – – 327.00	158.00 184.00 211.00 240.00	– – – –	– – – –	– – – –
34 36 38 40	170.00 190.00 212.00 235.00	204.00 228.00 255.00 282.00	369.00 452.00 – –	272.00 304.00 339.00 376.00	– – – –	– – – –	– – – –
42 44 46 48	259.00 285.00 312.00 339.00	311.00 342.00 374.00 407.00	– – – –	414.00 456.00 498.00 542.00	– – – –	– – – –	– – – –
