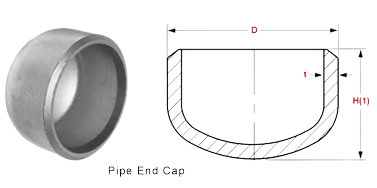

Pipe Ends which are also known as “Pipe End Caps” act as a seal to the end of a pipe with a primary function of waterproofing the piping network in addition to resisting moisture, chemicals and weather. These end caps are available in various sizes in high temperature resisting materials as they are widely used in the Energy Sectors, Mining and Construction and many more industries.
We are a leading stainless steel elbow pipe manufacturers that build carbon steel and stainless steel/alloy steel material elbow bend pipe of long and short radius for oil, gas, chemical, utilities, construction, etc. industries.
Parshva Steel And Alloys is a Manufacturer and Exporter of Carbon Steel, Alloy Steel, Stainless Steel, Duplex, Super Duplex & Higher Nickel Alloys Butt Weld Elbows as per ASTM A 234 WPB , WPBW, WPC, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70, ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L, ASTM A420 WPL3 /A420WPL6, ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91, ASTM A 815 UNS NO S31803, S32205, S32750, S32760, ASTM/ASME SB 366 UNS2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276) to Dubai, Sharjah, Abu Dhabi , Oman, Qatar, Saudi Arabia, Kuwait, Iran, Iraq, Malaysia, Indonesia, Norway, Nigeria, Algeria, Egypt, Libya, Brazil, Angola, Guinea, Mozambique, Tanzania, Venezuela, Canada, Ecuador, Ghana, Vietnam, Trinidad And Tobago, Thailand, Korea, Taiwan, Australia, Italy, France, Spain, Russia, Germany, Azerbaijan, Kazakhstan, Turkey, Uzbekistan and other countries.
| Nominal Pipe Size | Outside Diameter at Bevel D | End-to-End | ||
|---|---|---|---|---|
| CAP | ||||
| Length(1) | Limiting Wall thickness for length “E” | Length(2) | ||
| E | E1 | |||
| ½ ¾ 1 1¼ 1½ |
0.84 1.05 1.32 1.66 1.90 |
1.00 1.00 1.50 1.50 1.50 |
0.18 0.15 0.18 0.19 0.20 |
1.00 1.00 1.50 1.50 1.50 |
| 2 2½ 3 3½ 4 |
2.38 2.88 3.50 4.00 4.50 |
1.50 1.50 2.00 2.50 2.50 |
0.22 0.28 0.30 0.32 0.34 |
1.75 2.00 2.50 3.00 3.00 |
| 5 6 8 10 12 |
5.56 6.62 8.62 10.75 12.75 |
3.00 3.50 4.00 5.00 6.00 |
0.38 0.43 0.50 0.50 0.50 |
3.50 4.00 5.00 6.00 7.00 |
| 14 16 18 20 22 |
14.00 16.00 18.00 20.00 22.00 |
6.50 7.00 8.00 9.00 10.00 |
0.50 0.50 0.50 0.50 0.50 |
7.50 8.00 9.00 10.00 10.00 |
| 24 26 28 30 32 |
24.00 26.00 28.00 30.00 32.00 |
10.50 10.50 10.50 10.50 10.50 |
0.50 – – – – |
12.00 – – – – |
| 34 36 38 40 42 |
34.00 36.00 38.00 40.00 42.00 |
10.50 10.50 12.00 12.00 12.00 |
– – – – – |
– – – – – |
| 44 46 48 |
44.00 46.00 48.00 |
13.50 13.50 13.50 |
– – – |
– – – |
| Nominal Pipe Size | SGP | STD | S40 | X-S | S80 | XX-S | S160 |
|---|---|---|---|---|---|---|---|
| ½ ¾ 1 1¼ |
0.03 0.04 0.08 0.11 |
0.04 0.05 0.11 0.14 |
0.04 0.05 0.11 0.14 |
0.05 0.07 0.15 0.20 |
0.05 0.07 0.15 0.20 |
0.10 0.13 0.29 0.39 |
0.06 0.09 0.20 0.25 |
| 1½ 2 2½ 3 |
0.15 0.23 0.34 0.51 |
0.17 0.24 0.42 0.67 |
0.17 0.24 0.42 0.67 |
0.24 0.33 0.57 0.92 |
0.24 0.33 0.57 0.92 |
0.50 0.68 1.33 2.18 |
0.35 0.54 0.77 1.40 |
| 4 5 6 8 |
0.88 1.29 1.99 3.61 |
1.17 1.90 2.83 5.11 |
1.17 1.90 2.83 5.11 |
1.68 2.73 4.38 7.91 |
1.68 2.73 4.38 7.91 |
3.80 6.22 9.85 16.40 |
2.76 4.85 7.81 15.20 |
| 10 12 14 16 |
6.33 9.43 13.20 16.60 |
18.92 13.10 15.90 20.00 |
8.92 13.10 18.60 26.70 |
12.20 17.40 21.20 26.70 |
16.40 26.40 34.90 49.00 |
28.35 39.40 – – |
28.90 47.70 61.20 92.80 |
| 18 20 22 24 |
21.20 26.40 31.50 36.60 |
25.50 31.80 38.80 45.10 |
41.50 54.10 61.40 90.10 |
34.10 42.50 51.70 60.10 |
69.00 93.70 116.00 160.00 |
– – – – |
131.00 179.00 219.00 307.00 |
| 26 28 30 32 |
41.00 45.50 50.30 55.40 |
50.50 56.20 62.10 68.40 |
92.30 103.00 114.00 126.00 |
67.30 74.90 82.80 91.20 |
– – – – |
– – – – |
– – – – |
| 34 36 38 40 |
62.30 68.00 79.00 95.00 |
75.40 81.90 94.70 102.00 |
138.00 164.00 – – |
100.00 109.00 126.00 137.00 |
– – – – |
– – – – |
– – – – |
| 42 44 46 48 |
92.00 103.00 111.00 118.00 |
110.00 126.00 134.00 143.00 |
– – – – |
147.00 167.00 179.00 191.00 |
– – – – |
– – – – |
– – – – |
